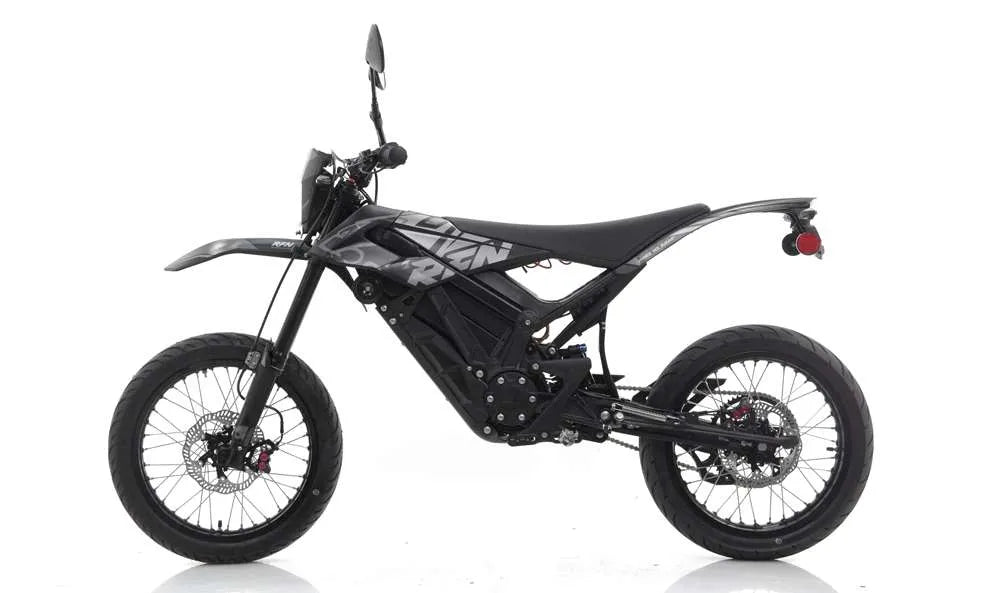

RFN RS Road (L1E)

The RFN RS Road (L1E) is a road-legal electric motorcycle designed for both urban commuting and light off-road adventures. It features a 74V 35Ah battery, providing a range of up to 112 miles at a consistent speed of 12.5 mph. The bike is equipped with a 4 kW air-cooled Permanent Magnet Synchronous Motor (PMSM), delivering a peak torque of 242 N·m at the rear wheel. This setup ensures efficient power delivery and a top speed of 28 mph, compliant with L1E homologation standards.

Key Specifications:

• Battery: 74V 35Ah LG Premium 21700 lithium cells; removable for convenient charging.
• Charging Time: Approximately 3 hours for a full charge.
• Drivetrain: Direct drive with a 13T front sprocket and 58T rear sprocket, utilizing a 420 chain.
• Suspension: Upside-down front forks with 200 mm travel and fully adjustable settings; rear suspension with 240 mm travel and adjustable compression, rebound, and preload.
• Dimensions: Seat height of 860 mm, wheelbase of 1330 mm, and ground clearance of 300 mm.
• Weight: Total weight of 76 kg, including the battery.
• Wheels and Tires: 17" reinforced aluminum rims with KENDA 80/90-17" front and 100/80-17" rear lightweight road tires.

Ride Modes:

• Mode 1 (Tortoise): Limited to 15 mph with a battery range of approximately 3.5 hours.
• Mode 2 (Rabbit): Standard 5 kW output, offering 1-2 hours of riding time.
• Mode 3 (Rocket): Provides 60 seconds of 12.5 kW output, with a total riding time of around 1 hour.
• Mode 4 (Reverse): Limited to 6 mph for maneuvering in tight spaces.

The RFN RS Road (L1E) is suitable for riders aged 16 and over, requiring only a CBT or a pre-2001 driving license. It combines the performance of the RFN Rally Pro with the convenience of road legality, making it an excellent choice for those seeking an eco-friendly and versatile mode of transportation.
